Trino Grafana Data Source Plugin

The Trino datasource allows to query and visualize Trino data from within Grafana.

Getting started

Install the plugin

The plugin is published in the Grafana plugin catalog. Install it in one of these ways:

• In the Grafana UI, go to Administration > Plugins and data > Plugins, search for "Trino" and click Install.

• With the Grafana CLI, then restart Grafana:

  grafana cli plugins install trino-datasource


  Older Grafana installations provide the same command as grafana-cli.

• In Docker, let Grafana install it on startup:

  docker run -d -p 3000:3000 \
    -e "GF_PLUGINS_PREINSTALL=trino-datasource" \
    --name=grafana \
    grafana/grafana-oss


  Grafana versions that don't support GF_PLUGINS_PREINSTALL use GF_INSTALL_PLUGINS=trino-datasource instead; newer versions still accept it, but log a deprecation warning.

To run a locally built, unsigned copy of the plugin, see DEVELOPMENT.md.

Add the data source

1. In Grafana, go to Connections > Data sources and click Add new data source.
2. Select Trino.
3. Set URL to the Trino coordinator, for example http://trino.example.com:8080.
4. Configure authentication, if your Trino cluster requires it.
5. Click Save & test.

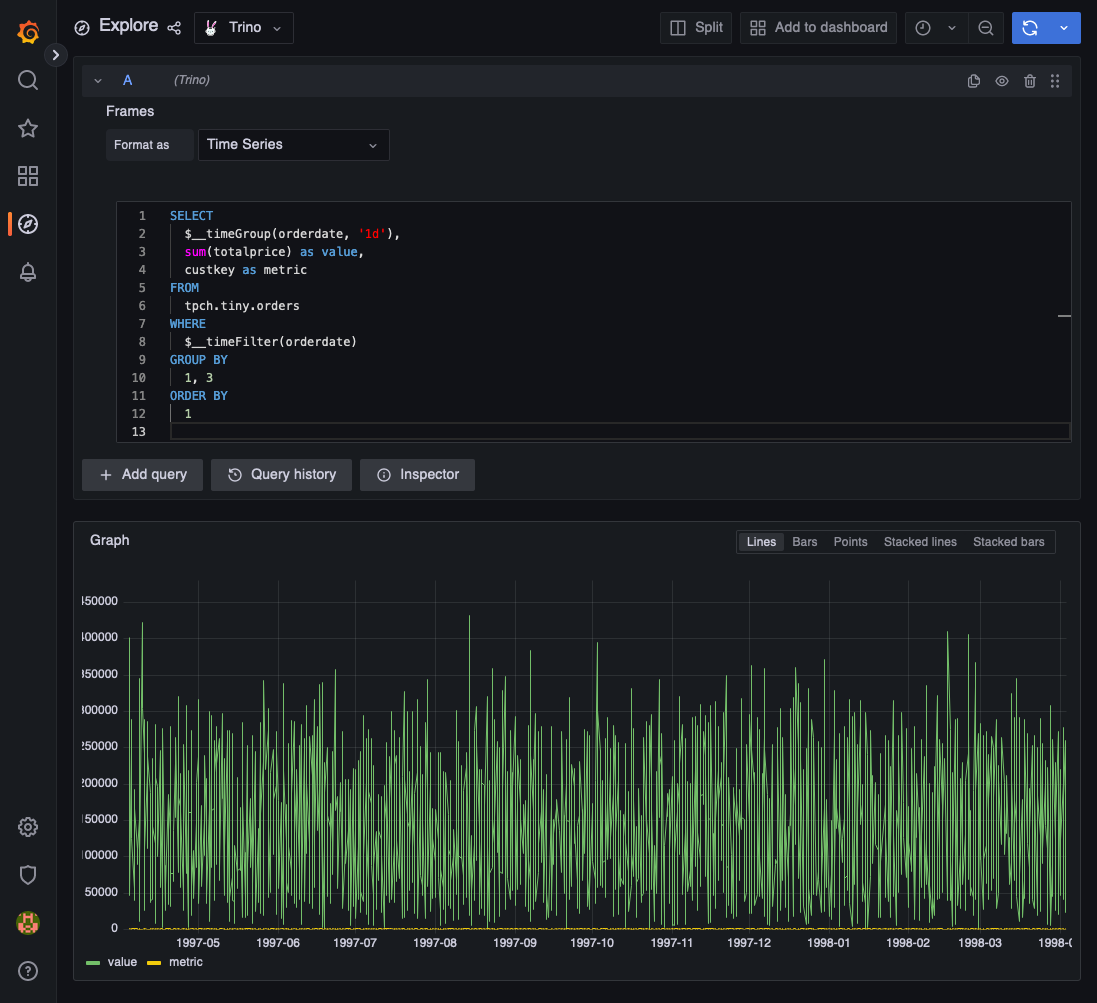

Open Explore, or add a panel to a dashboard, select the Trino data source and run a query, for example:

SELECT * FROM tpch.tiny.orders LIMIT 10

The tpch catalog is only available if it's configured in Trino.

Authentication

Authentication is configured in the data source settings. The options below can be combined, except where noted.

Basic auth

Under Auth, enable Basic auth and set User and Password. Trino only accepts passwords over HTTPS, unless it's configured to allow them over HTTP. With an http:// URL, the password is sent unencrypted, so only set one when Trino sits behind a proxy that terminates TLS. Versions up to 1.2.0 never sent the password over HTTP, and a Trino without password authentication rejects one with 401 Unauthorized: remove the password from such a data source. The password is not sent when the request already carries an access token, a forwarded OAuth identity or an OAuth client token.

The basic auth user is also the Trino session user, even without a password. Without basic auth, the session user is grafana, or with Kerberos the user Trino maps the principal to. When Trino authenticates a request with a token or certificate and its principal differs from the session user, Trino's access control must allow impersonating that user. The impersonation options below change the session user.

TLS

Under Auth:

• TLS Client Auth sends a client certificate and key, for Trino's certificate authentication.
• With CA Cert verifies the Trino server certificate against a custom CA.
• Skip TLS Verify disables server certificate verification.

Access token

Set Access token in the Trino section to send a static bearer token, such as a JWT, with every request. It can't be combined with the OAuth client credentials flow.

OAuth client credentials

In the OAuth Trino Authentication section, set Token URL, Client id and Client secret. All three are required. The plugin gets an access token from the token URL using the OAuth 2.0 client credentials flow, and sends it to Trino. The flow can't be combined with a basic auth password, which would be sent to the token URL too; a basic auth user without a password still sets the session user.

Impersonation user, if set, is sent as the Trino session user. Trino must allow the token's principal to impersonate that user. When impersonation of the signed-in user is enabled, the impersonation user only applies to anonymous users.

Forward OAuth Identity

If Grafana users sign in with OAuth, enable Forward OAuth Identity under Auth to send the signed-in user's OAuth access token to Trino as a bearer token, instead of the configured access token. Trino must be configured to accept tokens from the same identity provider. The forwarded token is not used when the OAuth client credentials flow is configured, because the token from that flow replaces it.

Kerberos

Enable Enable Kerberos in the Kerberos Authentication section to authenticate to a Trino cluster secured with Kerberos. Trino only accepts Kerberos over HTTPS, so the URL must use https://. The data source logs in with a keytab; everything it needs is stored with the data source, and nothing is read from the Grafana server's filesystem or environment:

• Principal and Realm name the principal to log in as.
• Config is the content of a krb5.conf, which lists the KDCs of the realm and maps hosts to realms.
• Keytab is the keytab file holding the principal's key, uploaded from your machine and stored encrypted, like a password.
• Remote service name, Service principal pattern and Use canonical hostname name the coordinator's service principal, trino@<host> by default. The host is first resolved to its canonical name through reverse DNS; turn off Use canonical hostname when that name differs from the one in the service principal, as it does in Docker, which appends the network name.

The data source logs in when it is saved or loaded and renews its ticket from the keytab, so a KDC that is unreachable at that point fails Save & test.

Kerberos can't be combined with a basic auth password, an access token, the OAuth client credentials flow or Forward OAuth Identity, which would replace the Kerberos credentials. Without basic auth, queries run as the Trino user the principal maps to, instead of grafana. A basic auth user without a password, or impersonation of the signed-in user, sets another session user, which the principal must be allowed to impersonate.

Impersonate the signed-in user

Enable Impersonate logged in user in the Trino section to run queries as the Grafana user, instead of the data source's user. Impersonate as selects whether the user's Login or Email becomes the Trino session user; with Email, queries from users without an email fail. Trino must allow the authenticated user to impersonate other users.

Anonymous users are not impersonated, and run as the data source's user, or the OAuth impersonation user if set.

Other settings

Roles

Roles in the Trino section sets authorization roles per catalog, as catalog:role pairs separated by semicolons. Use system for system roles, for example system:admin;hive:analyst.

Client tags

Client Tags in the Trino section is a comma-separated list of tags sent with every query, used for example to select a Trino resource group. Queries can add more tags in the query editor.

Private Data Source Connect

When Grafana has the secure SOCKS proxy enabled, as in Grafana Cloud with Private Data Source Connect, enable Secure Socks Proxy to reach a Trino cluster in a private network. The toggle is only shown when the proxy is enabled.

Custom HTTP headers are not supported, and the data source fails to load if any are set.

Features

• Authentication with basic auth, TLS client certificates, access tokens, OAuth client credentials, the signed-in user's forwarded OAuth identity or Kerberos
• Raw SQL editor only, no query builder yet
• Macros
• Client tags support, used to identify resource groups. Tags can be set on the data source, and extended with additional tags in the query editor.
• ARRAY, MAP and ROW columns rendered as JSON.
• Trimming edges of time series, to hide incomplete first and last time buckets. Set "Trim edges" in the query editor to drop that many rows from the start and the end of every result with a time column, after ordering it by the first time column. Leave it empty to keep all rows.
• Impersonation of the signed-in Grafana user, by login or email.

Complex types

ARRAY, MAP and ROW values are returned as JSON fields, with ROW values converted to objects keyed by field name. Unnamed fields, and fields whose names collide after lower-casing, are keyed by position as _col<N>; rows with no named fields at all stay positional arrays. In the table panel, hover a cell and click the eye icon to open the value in a formatted, collapsible JSON viewer. Explore on Grafana 11.6 through 12.3 does not show the eye icon; dashboard table panels do.

Row field names are returned in lower case, so quoted mixed-case field names such as "Word Start" appear as word start.

Macros

The plugin expands macros in the query before sending it to Trino. Macro names start with $__, for example $__timeFilter(created_at).

The time range boundaries are converted to UTC and rendered without a time zone. The expansions below assume the dashboard time range is 2023-01-01 00:00:00 to 2023-01-02 00:00:00 UTC.

Macro	Expands to
$__timeFilter(col)	col BETWEEN TIMESTAMP '2023-01-01 00:00:00' AND TIMESTAMP '2023-01-02 00:00:00'
$__timeFilter(col, 'yyyy-MM-dd')	parse_datetime(col,'yyyy-MM-dd') BETWEEN TIMESTAMP '2023-01-01 00:00:00' AND TIMESTAMP '2023-01-02 00:00:00'
$__dateFilter(col)	col BETWEEN date '2023-01-01' AND date '2023-01-02'
$__unixEpochFilter(col)	col BETWEEN 1672531200 AND 1672617600
$__timeFrom()	TIMESTAMP '2023-01-01 00:00:00'
$__timeTo()	TIMESTAMP '2023-01-02 00:00:00'
$__timeGroup(col, '1h')	FROM_UNIXTIME(FLOOR(TO_UNIXTIME(col)/3600)*3600)
$__timeGroup(col, '1d', 'yyyy-MM-dd')	FROM_UNIXTIME(FLOOR(TO_UNIXTIME(parse_datetime(col,'yyyy-MM-dd'))/86400)*86400)
$__unixEpochGroup(col, '1h')	FROM_UNIXTIME(FLOOR(col/3600)*3600)
$__parseTime('2023-01-01 12:00:00')	TIMESTAMP '2023-01-01 12:00:00'
$__parseTime(col, 'yyyy-MM-dd')	parse_datetime(col,'yyyy-MM-dd')
$__interval	The panel's interval, for example 1m
$__interval_ms	The panel's interval in milliseconds, for example 60000

Notes:

• $__timeFilter, $__dateFilter and $__unixEpochFilter include both boundaries.
• $__unixEpochFilter and $__unixEpochGroup expect a column with the number of seconds since the Unix epoch.
• The interval in $__timeGroup and $__unixEpochGroup can be quoted or not, and uses Grafana's interval syntax, like 30s, 5m, 1h, 1d or 1w. Use $__interval to follow the panel's interval, for example $__timeGroup(col, $__interval).
• The optional format argument of $__timeFilter, $__timeGroup and $__parseTime is a quoted parse_datetime pattern. The pattern 'yyyy-MM-dd HH:mm:ss' is special: it's expanded to a TIMESTAMP prefix instead, so it only works with string literals, such as $__parseTime('2023-01-01 12:00:00', 'yyyy-MM-dd HH:mm:ss'), not with columns.
• $__timeFrom() and $__timeTo() ignore any arguments.

Examples

Time series of the total order value per week, from the tpch catalog:

SELECT
  $__timeGroup(orderdate, '1w') AS time,
  sum(totalprice) AS value
FROM tpch.tiny.orders
WHERE $__timeFilter(orderdate)
GROUP BY 1
ORDER BY 1

is sent to Trino as:

SELECT
  FROM_UNIXTIME(FLOOR(TO_UNIXTIME(orderdate)/604800)*604800) AS time,
  sum(totalprice) AS value
FROM tpch.tiny.orders
WHERE orderdate BETWEEN TIMESTAMP '2023-01-01 00:00:00' AND TIMESTAMP '2023-01-02 00:00:00'
GROUP BY 1
ORDER BY 1

Filter a DATE column, such as a partition column, by day:

SELECT orderstatus, count(*) AS orders
FROM tpch.tiny.orders
WHERE $__dateFilter(orderdate)
GROUP BY 1

SELECT orderstatus, count(*) AS orders
FROM tpch.tiny.orders
WHERE orderdate BETWEEN date '2023-01-01' AND date '2023-01-02'
GROUP BY 1

Use the boundaries separately, for example to exclude the end of the range:

SELECT *
FROM events
WHERE event_time >= $__timeFrom() AND event_time < $__timeTo()

SELECT *
FROM events
WHERE event_time >= TIMESTAMP '2023-01-01 00:00:00' AND event_time < TIMESTAMP '2023-01-02 00:00:00'

Group and filter a column with Unix timestamps in seconds:

SELECT
  $__unixEpochGroup(created_epoch, '1h') AS time,
  count(*) AS value
FROM events
WHERE $__unixEpochFilter(created_epoch)
GROUP BY 1
ORDER BY 1

SELECT
  FROM_UNIXTIME(FLOOR(created_epoch/3600)*3600) AS time,
  count(*) AS value
FROM events
WHERE created_epoch BETWEEN 1672531200 AND 1672617600
GROUP BY 1
ORDER BY 1

Group and filter a VARCHAR column with dates like 2023-01-01:

SELECT
  $__timeGroup(event_day, '1d', 'yyyy-MM-dd') AS time,
  count(*) AS value
FROM events
WHERE $__timeFilter(event_day, 'yyyy-MM-dd')
GROUP BY 1
ORDER BY 1

SELECT
  FROM_UNIXTIME(FLOOR(TO_UNIXTIME(parse_datetime(event_day,'yyyy-MM-dd'))/86400)*86400) AS time,
  count(*) AS value
FROM events
WHERE parse_datetime(event_day,'yyyy-MM-dd') BETWEEN TIMESTAMP '2023-01-01 00:00:00' AND TIMESTAMP '2023-01-02 00:00:00'
GROUP BY 1
ORDER BY 1

Parse a string column in a query:

SELECT $__parseTime(event_day, 'yyyy-MM-dd') AS time, message
FROM events

SELECT parse_datetime(event_day,'yyyy-MM-dd') AS time, message
FROM events

Templating

Using Variables in Queries

Template variable values are only quoted when the template variable is a multi-value.

If the variable is a multi-value variable then use the IN comparison operator rather than = to match against multiple values.

Example with a template variable named hostname:

SELECT
  atimestamp as time,
  aint as value
FROM table
WHERE $__timeFilter(atimestamp) and hostname in($hostname)
ORDER BY atimestamp ASC

Disabling quoting for multi-value variables

Grafana automatically creates a quoted, comma-separated string for multi-value variables. For example: if server01 and server02 are selected then it will be formatted as: 'server01', 'server02'. To disable quoting, use the csv formatting option for variables:

${servers:csv}

Read more about variable formatting options in the Variables documentation.

Contributing

If you have any idea for an improvement or found a bug do not hesitate to open an issue or submit a pull request. We will appreciate any help from the community.

Development

See DEVELOPMENT.md for development instructions.

License

Apache 2.0 License, please see LICENSE for details.
